Uni-T-Fence Table Saw Fence
|
The Uni-T-Fence is a heavy
duty aluminum extrusion up grade fence for the Delta® Unifence Table Saw Guide
System designed by Peachtree Woodworking Supply, Inc.. It replaces the Stock
Delta Fence which mounts to their saw fence guide. You
must own the Delta UniFence to use this product. Mounting
the Uni-T-Fence to your Delta® Unifence is as simple
as sliding the Stock fence off and sliding the Uni-T-Fence
on. There are no holes to drill.
|
| No. |
Description
|
Price |
Quantity |
|
36" Uni-T-Fence with UHMW Fence Face
|
|
|
|
36" UHMW Uni-T Fence Face Replacement
|
|
|
|
43" Uni-T-Fence with UHMW Fence Face
|
|
|
|
43" UHMW Uni-T Fence Face Replacement |
$18.99 |
|
1110 |
16" Uni-T Fence with UHMW Fence Face |
$34.99 |
|
1114 |
16" UHMW Uni-T Fence Face Replacement (1 pair) |
$7.50 |
|
|
 |
|
Overall
Dimensions |
Width= 2" (Doesn't require fence
scale adjustment and fence
can be swapped in and out with original)
Height=3"
Length= 36" or 43"
UHMW Fence Face=1/2"x 2" x Fence
Length
Wall Thickness=.150"
UHMW Fence Face Opening is exactly 1/2" deep which allows the use
of any 1/2" stock (UHMW, plywood or hardwood) to be used as a temporary
fence face (burying dado blade in the fence) |

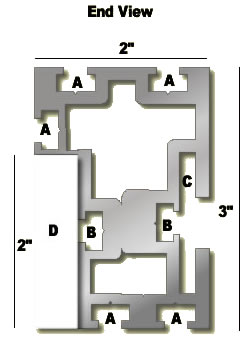

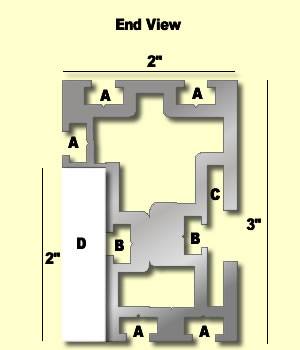

"A" T-Slots |
The

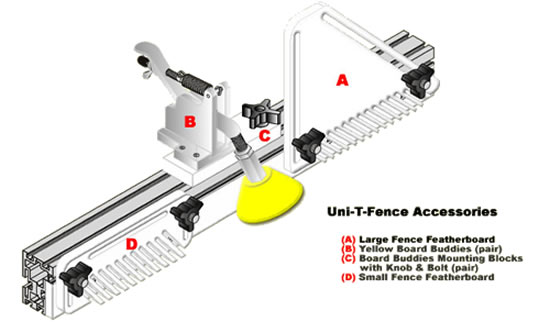

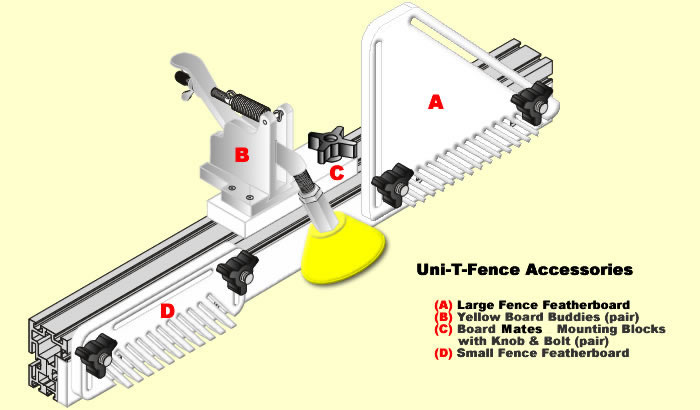

A t-slots are for mounting fence accessories like board
buddies, fence featerboards and shop made jigs. The
A t-slots take a standard 1/4" hex
head bolt or 1/4" t-bolt. |
"B" T-Slots |
The "B" t-slots on the two
fence sides are deeper than standard to take 1/4" hex
nuts. This makes for easy mounting for the UHMW fence
face and allows for mounting of the fence from the
back side using a mounting bracket. |
"C" T-Slot |
The "C" t-slot is used to mount
the Uni-T-Fence to the standard Delta® Unifence
Guide. |
"D" UHMW
Fence Face |
The UHMW fence face is pre-drilled and
mounted to the fence. We us UHMW for the following characteristics:
-
The highest abrasion resistance
-
Outstanding impact strength even
at low temperatures
-
Excellent sliding material due
to low coefficient of friction
-
Self-lubricating
-
Easily machined with common woodworking
tools
|
|
 |
